Commerical way for sotring drinking water

Collapsible Pillow Water Tank

Light and foldable for easy storage, movement and transportation Cheap cost with high-rate utilization of volume .

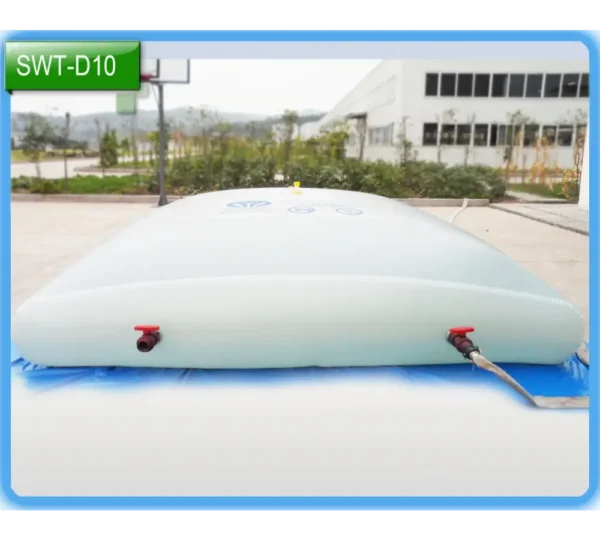

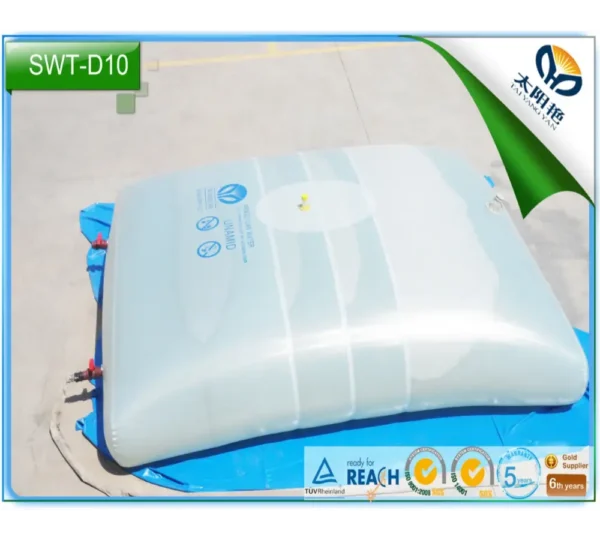

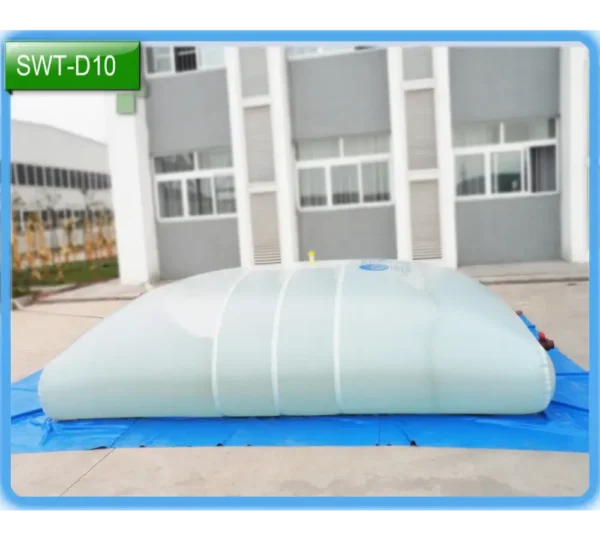

10000L food grade water tank

A wide range of applications
Storage of drinking (potable) water for public events (i.e. Concerts, Racing, Sports)
Storage of waste water at public events, shows etc
Fire service (water storage for firefighting)
Storage of slurry (Agriculture)
Storage of chemical fertilizer
Storage of produced water for drilling activities
Storage of water on small boats/vessels

Specification

Weight 25 kg
Dimensions 0.45 × 0.45 × 0.4 cm
Ground sheet protector size(L*W,m)

4.5*4.0
Material

fabric cated PVC 0.65mm
Capacity

10000L
Model

SWT-D10
Size

4.0*3.6*0.7m
Configration

1feed inlet hole and 1feed outlet hole

Original price was: $640.00.Current price is: $625.00.

Product Detail

WANGLIYUAN® Pillow Water Tanks

WANGLIYUAN® pillow water tanks, designed and manufactured by Chongqing Wangliyuan Agricultural Development Co., Ltd., are made of environmentally-friendly, nontoxic polymer material that contains in more than ten kinds of anti-aging, acid-resistant, alkaline-resistant and fire-resistant additives. They have been widely used for storing and transporting water and fuel. Besides, they are very user-friendly, and can be assembled within two minutes with connectors and pipes supplied. After use, they can be folded for future use. Mostly importantly, it is affordable and economical.

When large amount of liquid needs to be stored or it is difficult to build permanent reservoirs, our soft liquid storage tanks will be the best solution to your problems. In addition, they can also be used for transferring fire protection water, furnishing cities as emergency water supply systems, or irrigating farms.

Features Of Flexible Pillow Tank

  •         Light and foldable for easy storage, movement and transportation
  •         Cheap cost with high-rate utilization of volume
  •         Large working temperature range from -50～+80℃
  •         Non-contamination to drinkable water, fuel or other liquid
  •        Manufactured in line with international standards and Chinese Hygienic Standard of Polyethylene Products for Food Packaging
  •         Various sizes ranging from 100L-500000L



Model Volume L*W*H(M) Size for ground sheet protector(L*W)(M) Side filling/draining
SWT-D05 130 gallons 1.5 x0.85 x 0.4 2.0 x1.5 1 x Ø2’’
(500 liters)
SWT-D1 300 gallons 2 x 1 x 0.5 2.5 x1.5 1 x Ø2’’
(1000 liters)
SWT-D2 500 gallons 2.5x 1.6 x 0.5 3.0 x2.0 1 x Ø2’’
(2000 liters)
SWT-D3 800 gallons 2.5 x 2.0 x 0.6 3.0 x2.5 1 x Ø2’’
(3000 liters)
SWT-D4 1,100 gallons 3 x 2.6 x 1.5 3.5 x3.0 1 x Ø2’’
(4000 liters)
SWT-D5 1,300 gallons 3.3 x 2.5 x 0.6 4.0 x3.0 1 x Ø2’’
(5000 liters)
SWT-D10 2,600 gallons 4 x 3.6 x 0.7 4.5 x4.0 1 x Ø2’’
(10,000 liters)
SWT-D15 4,000 gallons 5 x 4.5 x 0.7 5.5 x5.0 1 x Ø2’’
(15,000 liters)
SWT-D20 5,000 gallons 5.7 x 5 x 0.7 6.5×5.5 1 x Ø2’’
(20,000 liters)
SWT-D30 7,000 gallons 6 x 5.5 x 0.7  6.5 x6.0 1x Ø2’’,1x Ø3’’,
(25,000 liters)
SWT-D35 8,000 gallons 7 x 6 x 0.65  7.5 x6.5 1x Ø2’’,1x Ø3’’,
(30,000 liters)
SWT-D40 11,000 gallons 8.5 x 7.0 x 0.7 9.0 x7.5 1x Ø2’’,1x Ø3’’,
(40,000 liters)
SWT-D50 13,000 gallons* 9.0 x 6.6 x0.85 9.5 x7.5 1x Ø2’’,1x Ø3’’,
(50,000 liters)
SWT-D75 20,000 gallons* 10 x 8.5 x 0.9 10.5 x9.0 1x Ø2’’,1x Ø3’’,
(75,000 liters )
SWT-D100 26,000 gallons* 11 x 9.5 x 1.0 11.5 x10 2x Ø2’’,2x Ø4’’,
(100,000 liters)
SWT-D150 40,000 gallons* 15 x10 x 1.0 15.0 x10.5 2x Ø2’’,2x Ø4’’,
(150,000 liters)
SWT-D200 50,000 gallons* 16 x12.5 x 1.0 16.5 x13 2x Ø2’’,2x Ø4’’,
(200,000 liters)
