30000L steel framework water tank for RAS fish farm system
A wide range of applications
Storage of drinking (potable) water for public events (i.e. Concerts, Racing, Sports)
Storage of waste water at public events, shows etc
Fire service (water storage for firefighting)
Storage of slurry (Agriculture)
Storage of chemical fertilizer
Storage of produced water for drilling activities
Storage of water on small boats/vessels
Specification
| Weight | 95 kg |
|---|---|
| Dimensions | 1.1 × 0.85 × 0.8 cm |
| Material | fabric cated PVC 0.9mm |
| Capacity | 30000L |
| Model | CFFT-30 |
| Size | φ*H：5.6×1.22m |
| Configration | 1feed inlet hole and 1feed outlet hole |
Original price was: $650.00.$625.00Current price is: $625.00.
Product Detail
Brief Introduction

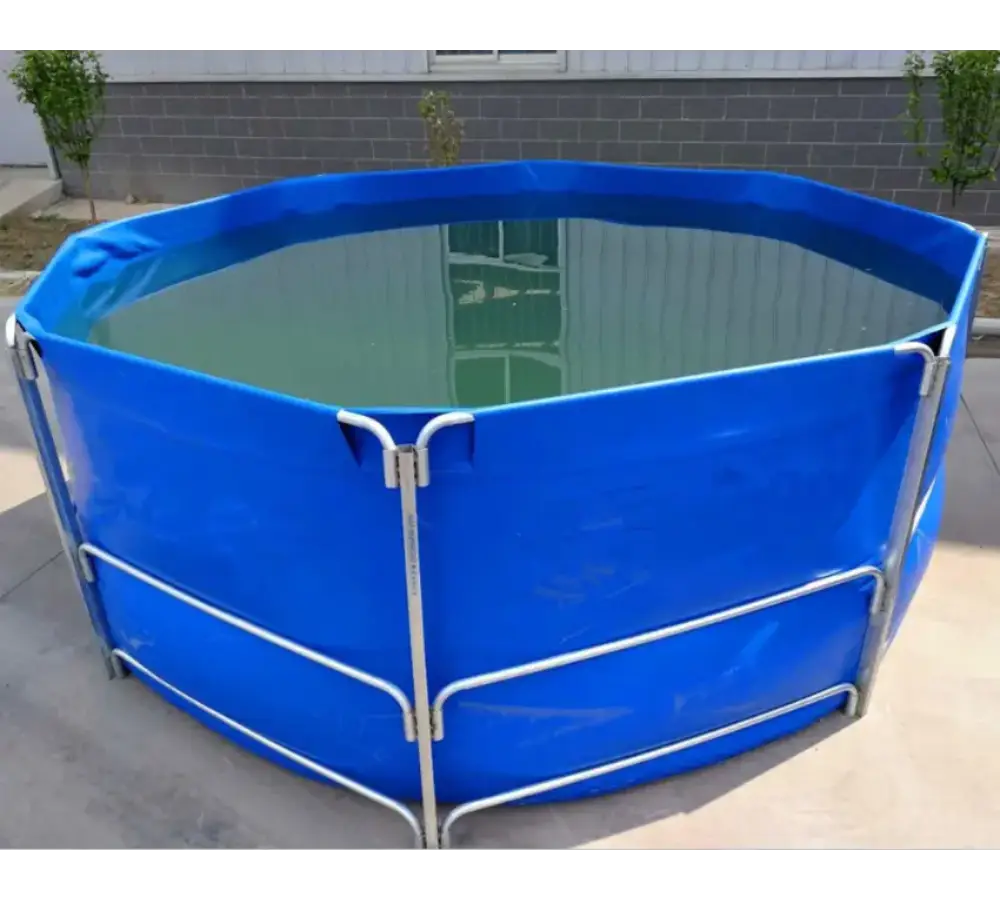

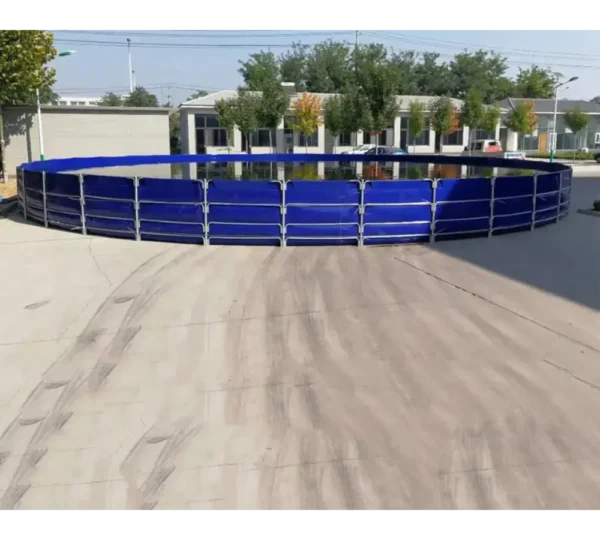

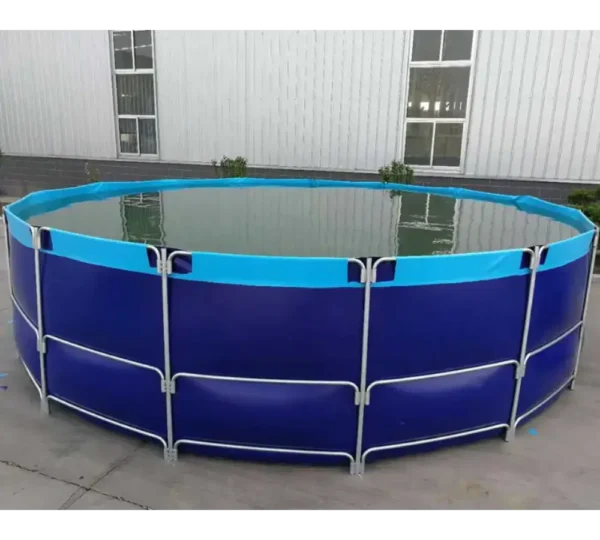

WANGLIYUAN plastic above-ground frame fish tank
WANGLIYUAN frame fish tank, designed and manufactured by Chongqing Wangliyuan Environmental Container R&D CO.,Limited are made of environmentally-friendly, nontoxic polymer material that contains in more than ten kinds of anti-aging, acid-resistant, alkaline-resistant and fire-resistant additives. They have been widely used for outdoor swimming and fish farm.
The above ground fish tank can be easily installed, it can also be easily taken apart, it is one of the most affordable pools to have, if you ever plan on moving you can take it with you. In addition, it is the ideal choice for those who are on a tight budget and still want to have a tank.
The fish tank can be used for more than 3 years. If it is damaged, you can use the glue and material to repair it. Because it is too long distance to ship goods back,we will send a kit bag for every tank.
Technology of fish tank:
WANGLIYUAN frame fish tank adopts new technology of inner water bag with outer ground sheet protector.

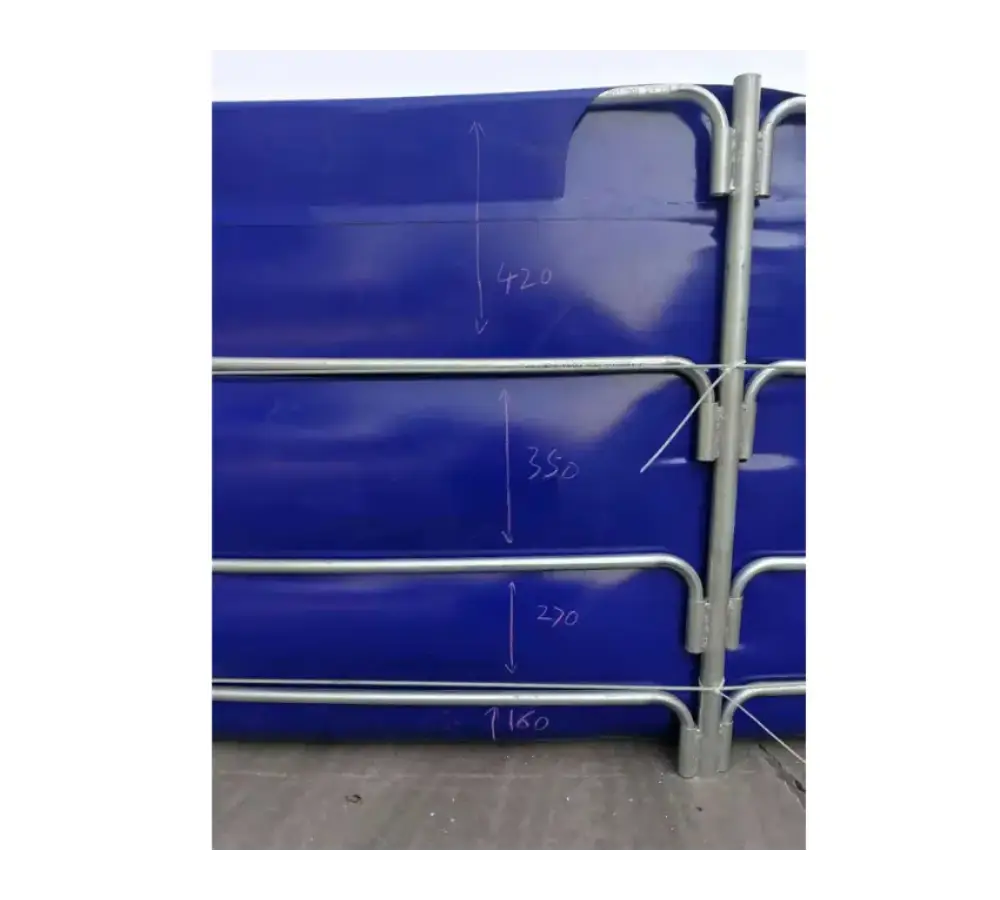

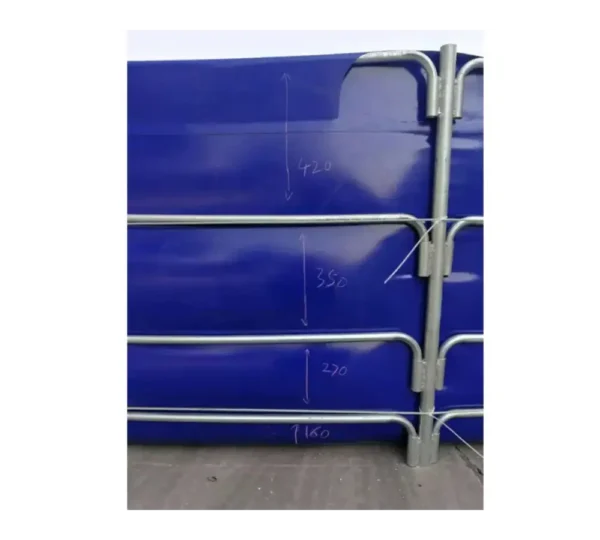

Frame work: Standpipe: φ30mm steel pipe; horizontal pipe: φ38mm steel pipe;
Our frame work of pool is good performance of pressure bearing capacity and weight capacity due to big size stand pie and horizontal pipe structure.
The heavy duty frame work can share the big pressure from water bag filled with water, and meanwhile the outer ground sheet protector can prevent the bottom of inner water bag from damaged by sharp thing. So the water tank is of good performance of puncture resistant, wear resistant, anti-UV, pressure bearing and weight capacity.
The pool including a filtration system. It can keep your water clean for a long time. You can even add a chlorinator to make it like a real fish tank.
Advantages of plastic above-ground frame fish tank:
1. Pool is easy to set up (no tools required)(filter pump and ladder require a screwdriver for assembly)
2. Convenient drain plug for easy draining.
3. Environmental Lead-free, waterproof, and fireproof material
4. Laminated PVC pool liner and Stainless frame support (such as outer diameter and thickness of horizontal pipe:38mm and 1.0-2.0mm; material:0.65-1.2 mm PVC)
5. 100% Safe Design and Workmanship
6. Advanced HF hot-unionizer to make the durable neat, beautiful frame pool
7. Removable and Portable
| Model | Volume | L*W*H(M) | Size for ground sheet protector(L*W)(M) | Side filling/draining |
| SWT-D05 | 130 gallons | 1.5 x0.85 x 0.4 | 2.0 x1.5 | 1 x Ø2’’ |
| (500 liters) | ||||
| SWT-D1 | 300 gallons | 2 x 1 x 0.5 | 2.5 x1.5 | 1 x Ø2’’ |
| (1000 liters) | ||||
| SWT-D2 | 500 gallons | 2.5x 1.6 x 0.5 | 3.0 x2.0 | 1 x Ø2’’ |
| (2000 liters) | ||||
| SWT-D3 | 800 gallons | 2.5 x 2.0 x 0.6 | 3.0 x2.5 | 1 x Ø2’’ |
| (3000 liters) | ||||
| SWT-D4 | 1,100 gallons | 3 x 2.6 x 1.5 | 3.5 x3.0 | 1 x Ø2’’ |
| (4000 liters) | ||||
| SWT-D5 | 1,300 gallons | 3.3 x 2.5 x 0.6 | 4.0 x3.0 | 1 x Ø2’’ |
| (5000 liters) | ||||
| SWT-D10 | 2,600 gallons | 4 x 3.6 x 0.7 | 4.5 x4.0 | 1 x Ø2’’ |
| (10,000 liters) | ||||
| SWT-D15 | 4,000 gallons | 5 x 4.5 x 0.7 | 5.5 x5.0 | 1 x Ø2’’ |
| (15,000 liters) | ||||
| SWT-D20 | 5,000 gallons | 5.7 x 5 x 0.7 | 6.5×5.5 | 1 x Ø2’’ |
| (20,000 liters) | ||||
| SWT-D30 | 7,000 gallons | 6 x 5.5 x 0.7 | 6.5 x6.0 | 1x Ø2’’,1x Ø3’’, |
| (25,000 liters) | ||||
| SWT-D35 | 8,000 gallons | 7 x 6 x 0.65 | 7.5 x6.5 | 1x Ø2’’,1x Ø3’’, |
| (30,000 liters) | ||||
| SWT-D40 | 11,000 gallons | 8.5 x 7.0 x 0.7 | 9.0 x7.5 | 1x Ø2’’,1x Ø3’’, |
| (40,000 liters) | ||||
| SWT-D50 | 13,000 gallons* | 9.0 x 6.6 x0.85 | 9.5 x7.5 | 1x Ø2’’,1x Ø3’’, |
| (50,000 liters) | ||||
| SWT-D75 | 20,000 gallons* | 10 x 8.5 x 0.9 | 10.5 x9.0 | 1x Ø2’’,1x Ø3’’, |
| (75,000 liters ) | ||||
| SWT-D100 | 26,000 gallons* | 11 x 9.5 x 1.0 | 11.5 x10 | 2x Ø2’’,2x Ø4’’, |
| (100,000 liters) | ||||
| SWT-D150 | 40,000 gallons* | 15 x10 x 1.0 | 15.0 x10.5 | 2x Ø2’’,2x Ø4’’, |
| (150,000 liters) | ||||
| SWT-D200 | 50,000 gallons* | 16 x12.5 x 1.0 | 16.5 x13 | 2x Ø2’’,2x Ø4’’, |
| (200,000 liters) |
